316L/304/302 1um-40um Ultra-Fine Electrical And Thermal
Conductivity Corrosion Resistance Stainless Steel Metal Fiber
【Principal Component】
316L,304,302,430,434 and other stainless steel materials.
【Product Description】

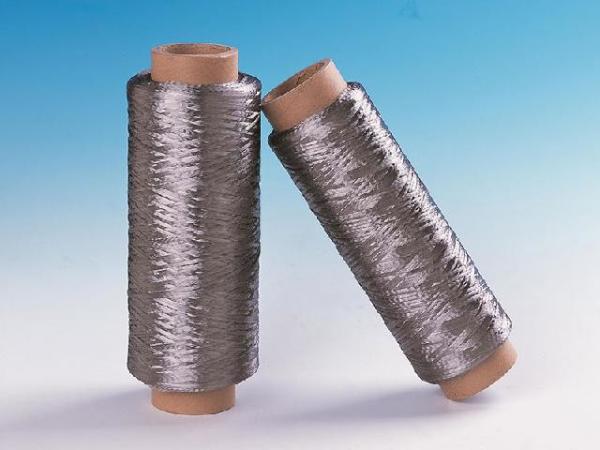

Made of stainless steel wire by bundle drawing process, the
diameter is as fine as 1μm ~ 40μm. Since the diameter of stainless
steel fiber reaches the ultra-fine-micron level, it not only
maintains the properties of stainless steel such as electrical
conductivity, thermal conductivity, corrosion resistance, high
elastic modulus and tensile strength, but also has softness and
high specific surface area similar to other textile fibers, so It
is the perfect base materials for the production of various
stainless steel fiber products. It can be widely used in textile,
filtration, metallurgy and environmental protection and other
fields which covering the fields of industry, civil and military.
【Technical Specs】
| Diameter(μm) | Filaments(f) | Strength(cN) | Elongation(%) |
Weight/meter(g/m) |
| 4.5 | 12000 | ≥2.0 | ≥0.7 | 1.40～1.64 |
| 6.5 | 6000 | ≥4.5 | ≥1.0 | 1.56～1.70 |
| 7.3 | 6000 | ≥5.5 | ≥1.0 | 1.98～2.14 |
| 6000 | ≥4.0 | ≥0.8 | 1.92～2.20 |
| 8 | 6000 | ≥7 | ≥1.05 | 2.34～2.57 |
| ≥4.0 | ≥0.85 | 2.26～2.62 |
| 12 | 2000 | ≥18 | ≥1.1 | 1.82～1.98 |
| ≥13.5 | ≥0.9 | 1.76～2.04 |
| 22 | 1000 | ≥50 | ≥1.25 | 3.06～3.3 |
Annotate:
1)The diameter of the fiber can be produced between 1 and 100
micron according to the customer’s request.
2)The fiber’s filaments and breaking strength of single fiber can
be controlled by the customer’s request.
3)The fiber’s room temperature resistance will change along with
the stainless steel state.
Main Application:
1 Pure stainless steel fiber fabric
2 Blended spun stainless steel fiber Fabrics
3 Metal fiber sintered felt
4 Conductive plastics for electromagnetic shielding and
anti-static,anti-counterfeit and anti-static paper
5 Fiber reinforced materials
6 anti-static brush,anti-static wrist brand etc
7 High Temperature heating body
8 High temperature cushion mould,high temperature conveyor belt
Package:
1 Cardboard conical tube
2 Cylindrical tube
3 Spool
