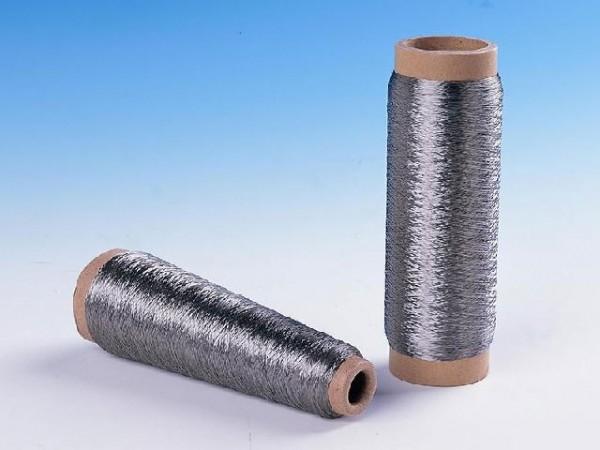

    12um Stainless Steel Conductive Fiber , 0.78g/M Ultrafine Composite Wire

    Ask Lasest Price
    Brand Name : huitong
    Model Number : 12um
    Certification : ROHS
    Payment Terms : L/C, T/T
    Supply Ability : 10tons per months
    Delivery Time : depends on quantity
    Price : Negotiable
    • Product Details
    • Company Profile

    12um Stainless Steel Conductive Fiber , 0.78g/M Ultrafine Composite Wire

    Ultrafine Metal Fiber Composite Wire-- Applicated In Textileintelligent heating fields

    Product:
    Product description
    【Description】
    The ultra-fine metal fiber composite wire is made of a single or multi-strand microfiber wire twisted to form a flexible wire.
    Features:
    * Good electrical conductivity
    * High strength, high elastic modulus
    * Abrasion resistance, corrosion resistance
    * Excellent thermal stability in an oxidizing atmosphere
    * High durability, easy to process, easy to woven into textiles
    * Wide range of resistance, customized heating resistance
    The intelligent heating element made of ultra-fine metal fiber composite wire produced by our company has the advantages of softness, folding resistance, uniform heat generation and long service life.
    【Application】
    Intelligent heating clothing (heating gloves, heating belts, heating insoles, heating socks, heating vests, jackets, sleeping bags, etc.), heating pads, car seat heating, car steering wheel
    【Parameters】

    Type

    Weight/Meter(g)

    Break force(N)

    Elongation(%)

    Average Electricity Resistance()

    14m×90×1

    0.12

    25

    1.10%

    61

    12m×90×2

    0.17

    44

    1.10%

    42

    12m×100×1

    0.095

    24

    1.10%

    59

    12m×100×2

    0.19

    41

    1.10%

    38

    12m×100×3

    0.28

    69

    1.10%

    22

    12m×275×1

    0.26

    59

    1.10%

    27

    12m×275×2

    0.54

    75

    1.10%

    14

    12m×275×3

    0.78

    125

    1.10%

    9

    12m×275×4

    1.05

    130

    1.10%

    7

    12m×275×5

    1.3

    160

    1.10%

    5

    12m×275×6

    1.5

    180

    1.10%

    4

    8m×1000×1

    0.42

    69

    1.10%

    16

    8m×1000×2

    0.85

    108

    1.10%

    8

    12m×1000×1

    0.95

    100

    1.10%

    7

    12m×1000×2

    1.9

    340

    1.10%

    4

    【Other Application】
    The ultrafine metal fiber composite wire has excellent electrical conductivity, high strength, high elastic modulus, abrasion resistance, corrosion resistance and excellent thermal stability in an oxidizing atmosphere, and can be widely applied to an antistatic brush and high temperature sewing thread, radio frequency identification, etc.
